Wipotec

Track & Trace systems for pharmaceutical serialization

Modular solutions for serialization, inspection and aggregation, adaptable to every requirement.

To guarantee the authenticity of a medicine, every package must be uniquely identified, protected against tampering and traced along the whole supply chain.

fabricators pharma offers the Wipotec TQS (Traceable Quality System) systems: modular solutions for pharma Track & Trace that combine serialization, code verification, weight control, tamper-evident sealing and multi-level aggregation.

We help you choose the configuration best suited to your packaging line and your target market.

Request a demo

Serialization requirements change from country to country. That is why the Traceable Quality System (TQS) range is modular and highly flexible, adapting to different formats, line speeds and markets.

It also includes OEM kits to integrate directly into packaging machines, with the same functions as the stand-alone machines. Integration is carried out together with the machine manufacturer.

Fast serialization with TQS Fast Track

To meet DSCSA (USA) and FMD (EU) requirements quickly, fabricators pharma offers Wipotec's TQS Fast Track configurations: preconfigured systems for automated serialization and aggregation, with implementation from 6 weeks.

A fast, ready-to-use solution with the key functions of the TQS range: serialization, weight control, tamper-evident sealing and multi-level aggregation.

Ready for the requirements of every market

In Europe, Directive 2011/62/EU and Delegated Regulation (EU) 2016/161 require, for medicines in scope, a unique identifier and an anti-tampering device on the package.

Serialization and aggregation rules change from country to country. fabricators pharma helps you identify the Wipotec TQS configuration best suited to your market: the systems are modular and adapt to different requirements.

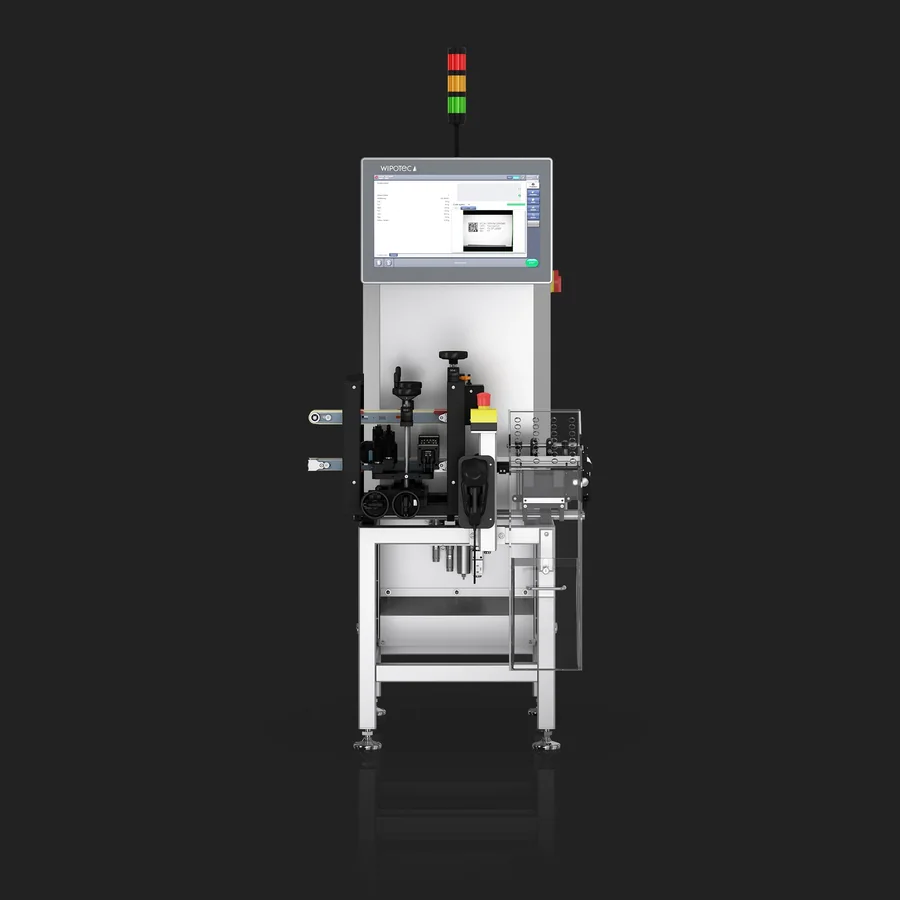

TQS-SP

TQS-SP

Serialization of folding boxes in an extremely compact space.

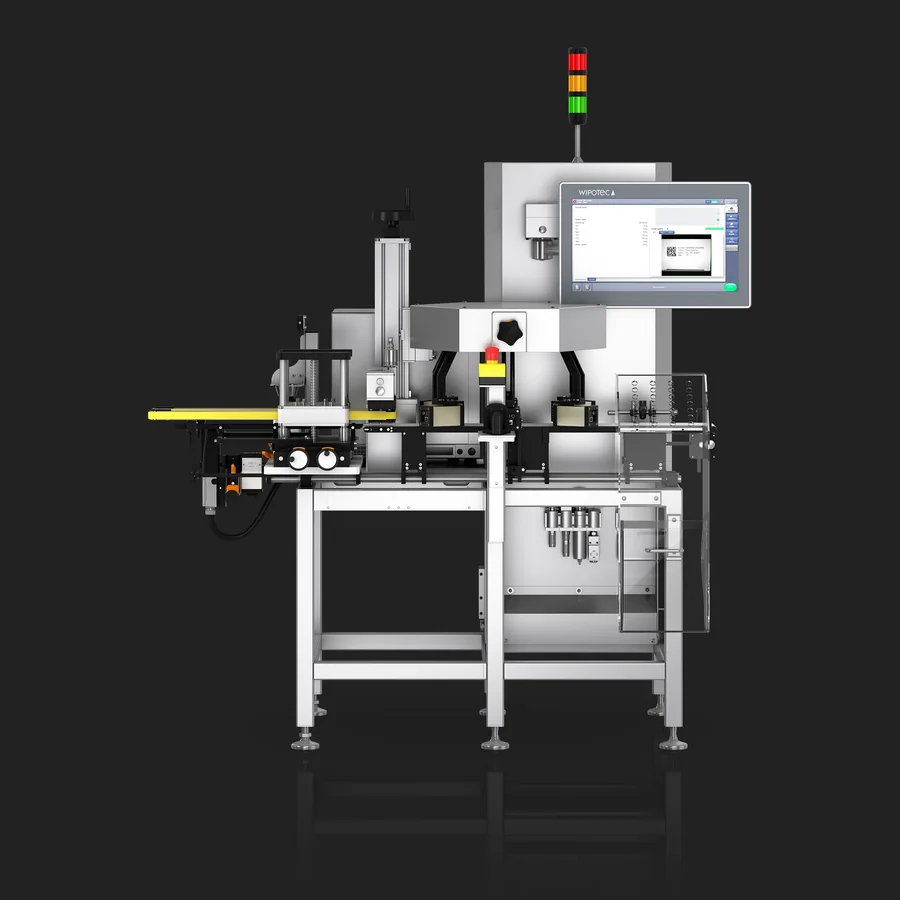

TQS-SP-Bottle

TQS-SP-Bottle

Ultra-fast, complete 360° inspection of bottles and vials.

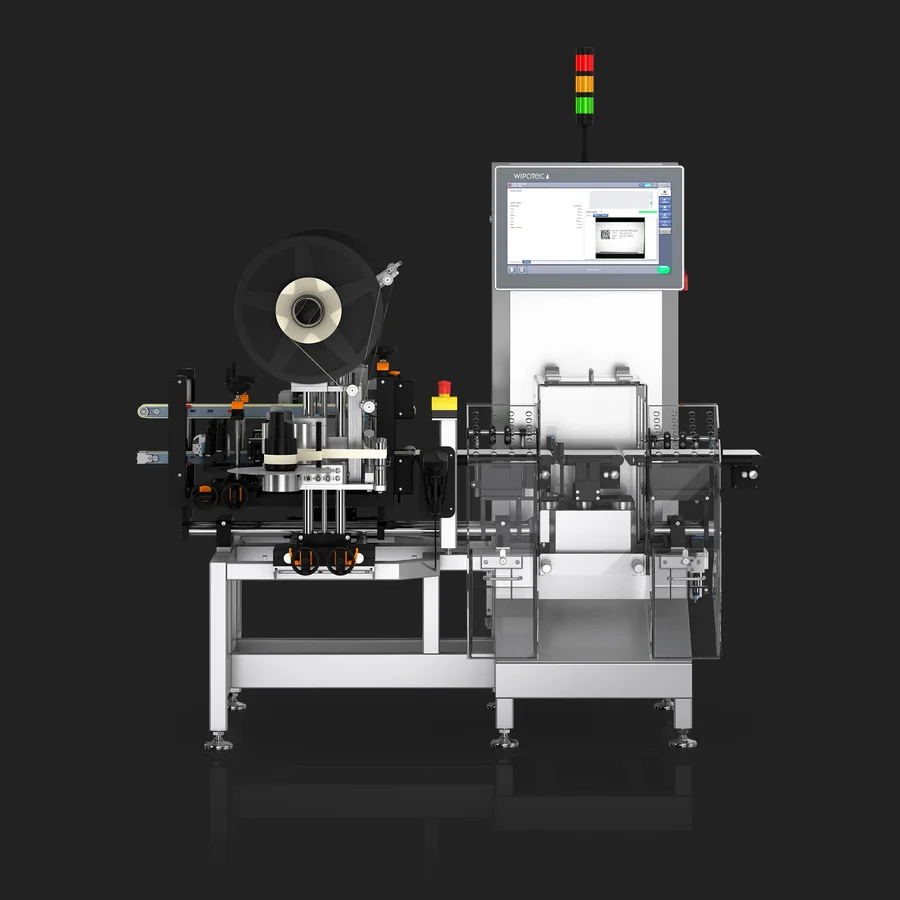

TQS-HC-A Tamper-Evident

TQS-HC-A Tamper-Evident

Serialization, weight checking and tamper-evident seals for product safety.

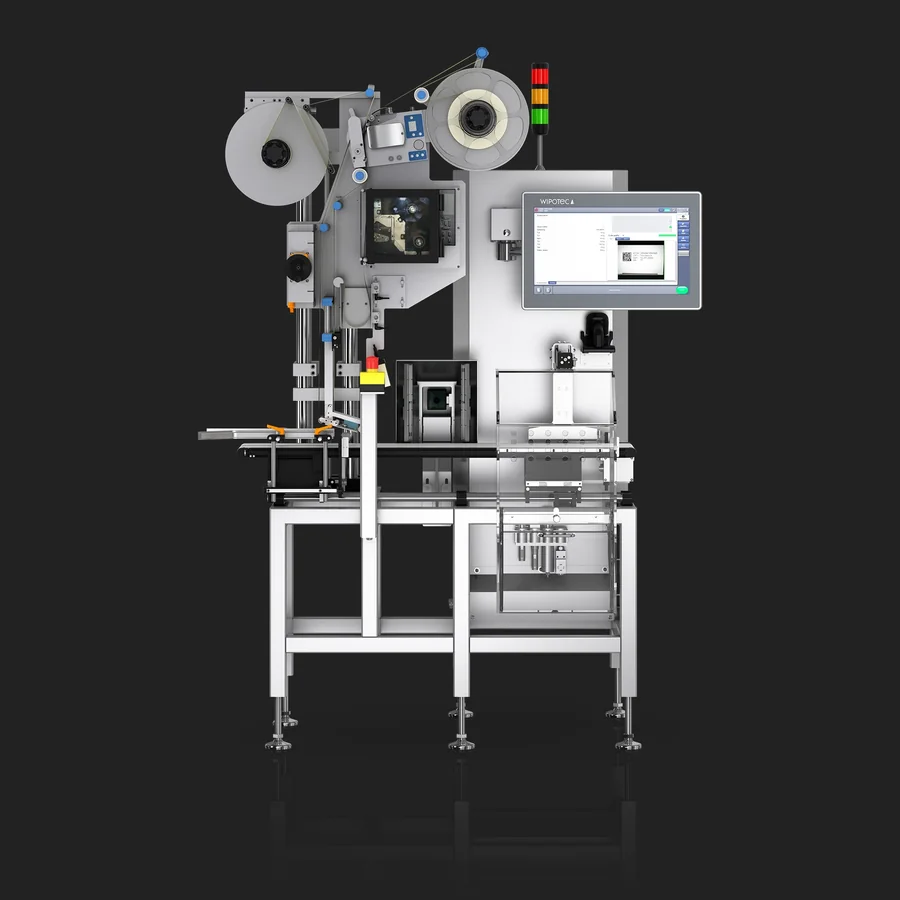

TQS-BP

TQS-BP

Simple, flexible bundle aggregation, independent of the format.

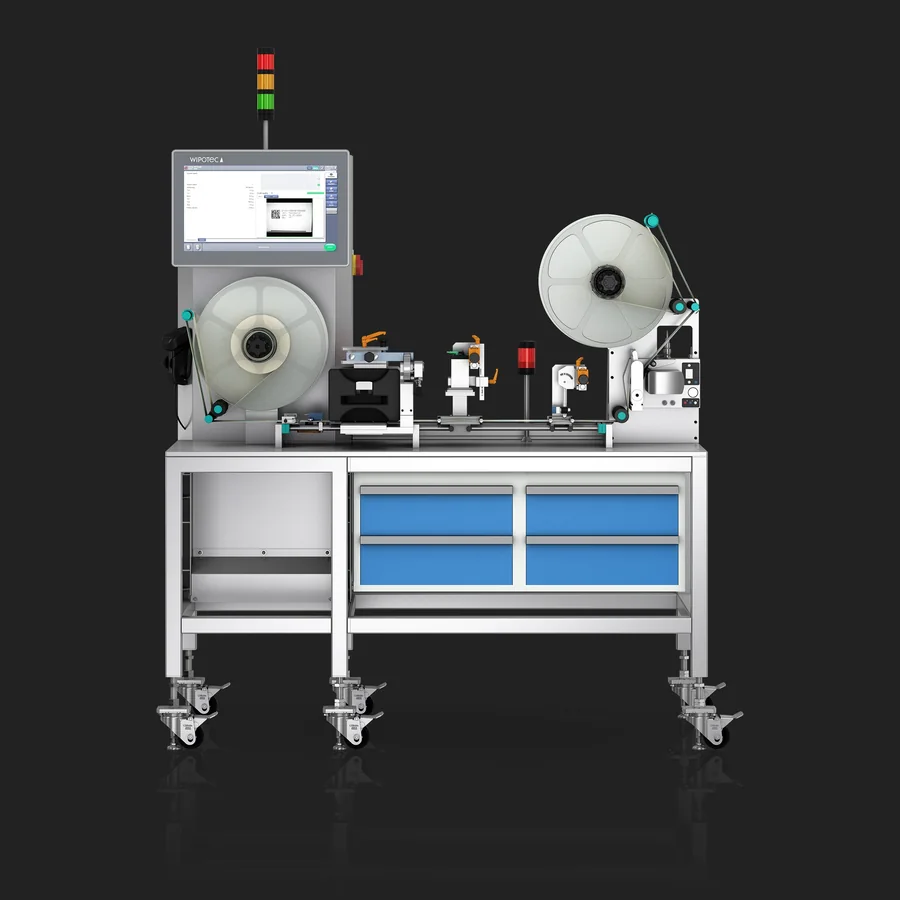

TQS-LI

TQS-LI

Offline coding and label inspection: roll-by-roll quality assurance.

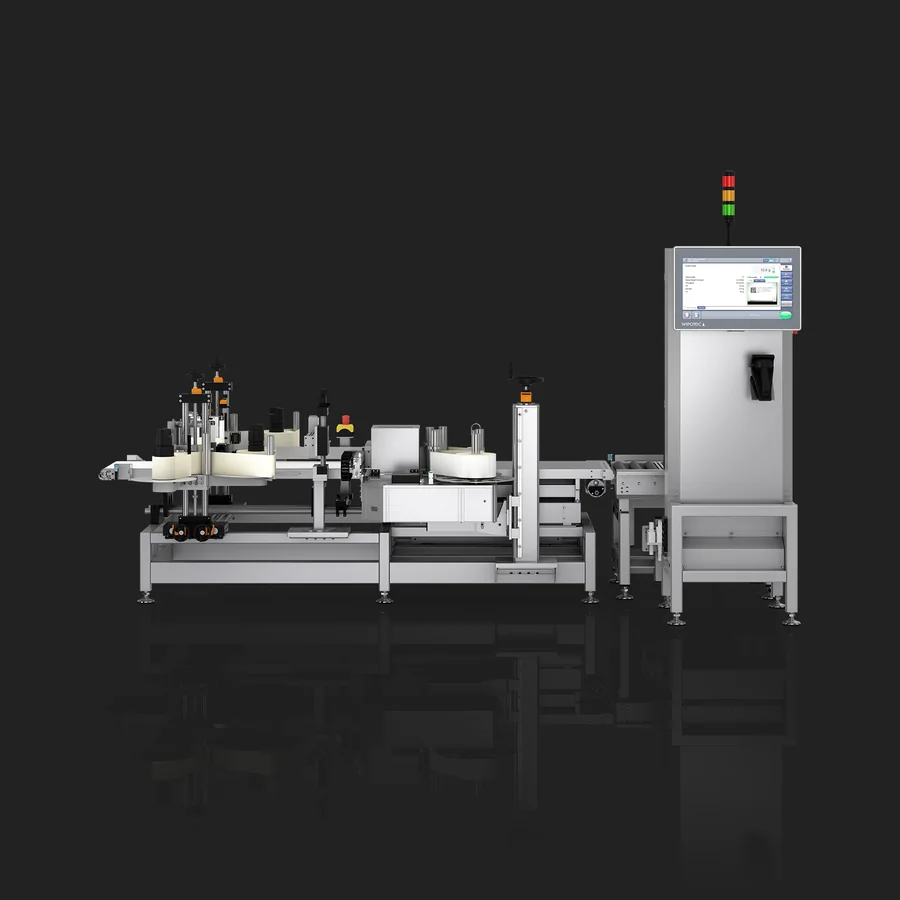

Shipping Case Labeling

Shipping Case Labeling

Labeling and weighing of shipping cases and cartons.

Why choose Wipotec TQS Track & Trace

  • ✓ Fast serialization with TQS Fast Track, with implementation within 6 weeks*.
  • ✓ A single supplier for coordinated, perfectly compatible components.
  • ✓ Precise product transport, with reliable compensation of the carton height tolerances.
  • ✓ High-precision printing and optical verification, with top belts adjustable in height and width.
  • ✓ A complete solution that meets the serialization requirements and regulations of different markets.
  • ✓ Open interfaces to the main level 3 suppliers, to integrate into the customer's IT infrastructure.
  • ✓ All the key functions for pharmaceutical serialization in a compact footprint.
  • ✓ Tamper-evident seals for single packages, with an integrated tamper-evident labeler.
  • ✓ Country-specific labels, printed with an optional in-line thermal transfer printer.
  • ✓ Software updates to keep up with the regulatory changes of the different countries.

The main features of Wipotec TQS systems

High production capacity

Up to 600 pieces per minute with TQS-SP and TQS-HC-A (300 in the standard version).

Fast configuration with ConfigureFast

Print data and print image reach the printer and camera immediately, from a single software interface.

Documented validation

Validation packages and IQ/OQ, FDS, RA and TM documentation available as an option.

Tool-free format change

Switch from one format to another without tools, with a modular design that can also be integrated into existing packaging lines.

Solutions for every package format

Cartons and folding boxes

  • Serialization with printing on the side areas or the top side.
  • Completeness check by weighing and application of Tamper-Evident seals.
  • Automatic ejection of packages with a faulty code or wrong weight, with 100% product control.
  • Multi-level aggregation up to pallet, also in semi-automatic mode.

Bottles and vials

  • Serialization by applying labels.
  • Optical check of the print on the entire surface.
  • Automatic rejection of unreadable labels before application.
  • 360° inspection and printing of auxiliary codes on the bottom or lid.

Flat cardboard blanks

  • Offline coding and serialization of flat cardboard blanks, up to 250 per minute.
  • Optical control of 100% of the print on the entire surface.
  • Rejection of blanks with faulty codes or texts into lockable containers.
  • Centralized solution, with no in-line integration effort, for small and medium batches.

Vials with RFID

  • Printing of code or text on the cap with a continuous inkjet printer.
  • Print control at 100% and cap color verification from above.
  • Automatic ejection of faulty vials, to avoid mix-ups and rework.
  • Integrated RFID writing and reading, with the same data as printer and camera.

Bundles

  • First level of aggregation: the serials of several packages become a single bundle serial.
  • Format-independent transport and reading, also with shrink-wrapped or wrapped bundles.
  • Labeling with an integrated printer and camera control.
  • Up to 90 pieces per minute (30 in the standard version).

Shipping cases and pallets

  • Semi-automatic aggregation of manually packed cases.
  • Camera reading of the entire surface of each layer.
  • Case label generated automatically when a layer is completed.
  • Pallet aggregation with the TQS-MP-EXT option.

In-machine integration

  • Modules for direct integration into cartoners and labelers.
  • Same functions as the stand-alone machines, for serialization and case aggregation.
  • Solution for limited installation space, also combined with stand-alone machines.
  • Integration agreed with the machine manufacturer.

*The period starts from the acceptance of the order and ends before the acceptance test of the machine.
